Single layer limitations

This page presents with a simple example the main limitation of single layer neural networks.

Network architecture

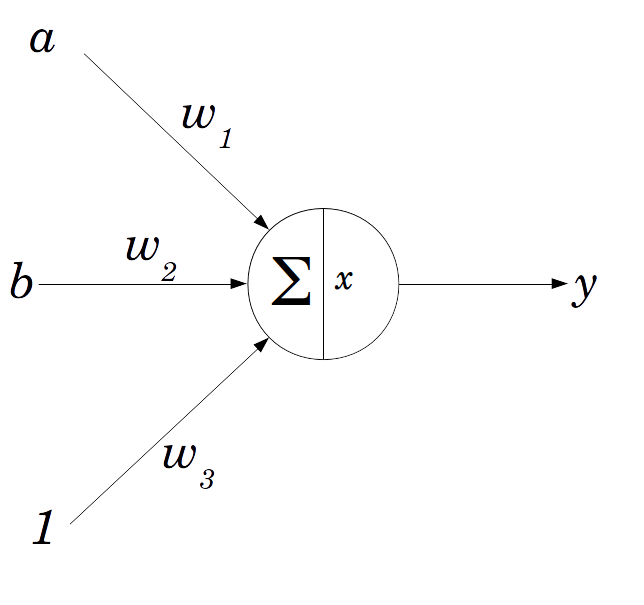

Let's consider the following single-layer network architecture with two inputs ( \(a, b \) ) and one output ( \(y\) ).

Logic OR function

Let's assume we want to train an artificial single-layer neural network to learn logic functions. Let's start with the OR logic function:

a	b	y = a + b
0	0	0
0	1	1
1	0	1
1	1	1

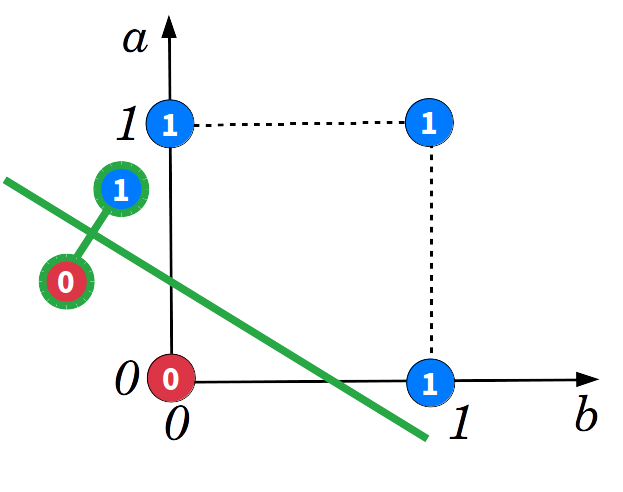

The space of the OR fonction can be drawn. X-axis and Y-axis are respectively the \( a \) and \( b\) inputs. The green line is the separation line ( \( y=0 \) ). As illustrated below, the network can find an optimal solution:

Logic XOR function

Assume we now want to train the network on the XOR logic function:

a	b	y = a ⊕ b
0	0	0
0	1	1
1	0	1
1	1	0

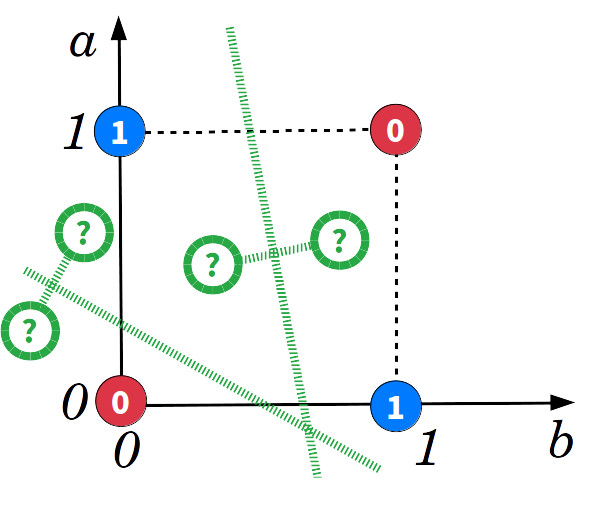

As for the OR function, space can be drawn. Unfortunatly, the network isn't able to disriminate ones from zeros.

Conclusion

The transfert function of this single-layer network is given by:

$$ \begin{equation} y= w_1a + w_2b +w_3 \label{eq:transfert-function} \end{equation} $$

The equation \( \eqref{eq:transfert-function} \) is a linear model. This explain why the frontier between ones and zeros is necessary a line. The XOR function is a non-linear problem that can't be classified with a linear model. Fortunatly, multilayer perceptron (MLP) can deal with non-linear problems.
