Single layer classification example
Problem statement

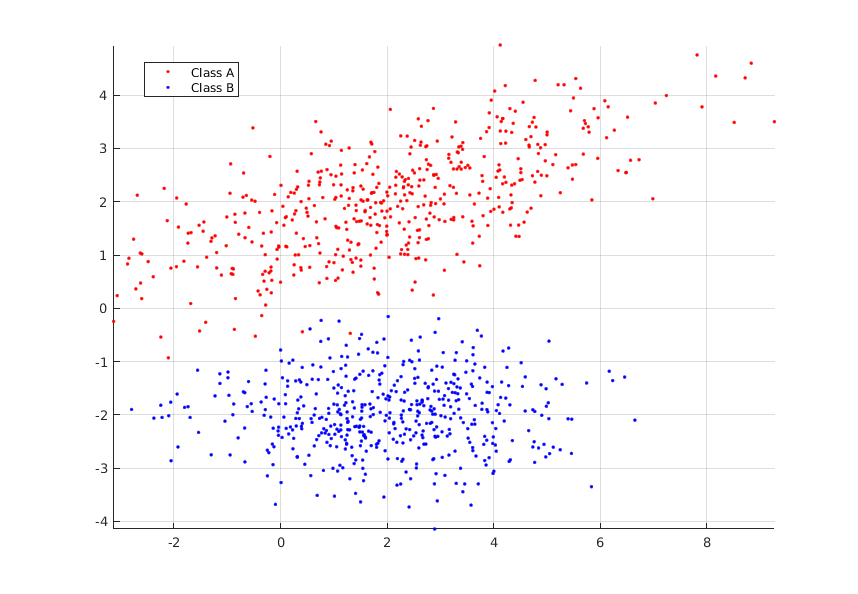

In this example, we consider a dataset where each input vector \( X = ( x , y) \) is assocated to a class A or B respectively with values of +1 and -1. The following figure illustrates the classification problem:
Network architecture

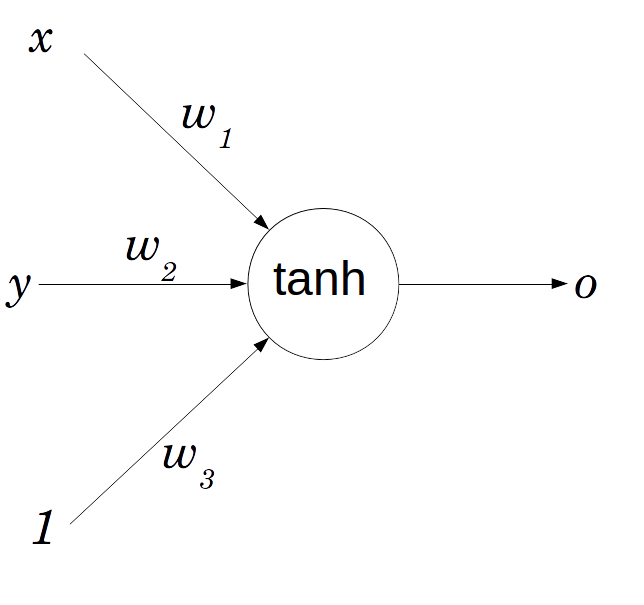

The single layer architecture is the following:

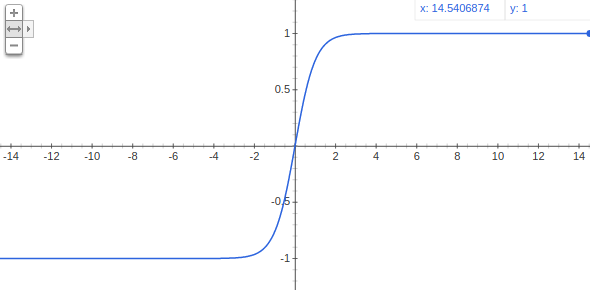

As we need to distinguish class A from class B, we have to use an activation function that can separate classes. In this example, hyperbolic tangent has been selected:
The choice of hyperbolic tangent is motivated by the fact that this function output a value between -1 and +1. Output can be interpretated in two ways, in terme of binary classes (A or B) or in term of probabilities.
Binary interpretation
To determine if the sample belongs to class A or B, ones can specify the following rule: positive outputs belongs to class A, while negative to class B. Mathematicaly, we add the following function after the output of the network:
- \( o=+1 \) when tanh is positive
- \( o=-1 \) when tanh is negative
Probabilistic interpretation
The second option to interpret the output of the network is to consider it as a probability to belonging to classes A or B. When the output is equal to +1, the probability for the sample to be classify in class A or B is respectively one and zero. The following equations generalize this concept, and convert the network output into probablities:
Probablity to be in class A:
$$ p_A = \frac{o+1}{2} $$
Probablity to be in class B:
$$ p_B = \frac{1-o}{2} $$
Note that sum of probablities is always equal to one ( \( p_A + p_B = 1\) ).
Results
The following figures shows how the space is splitted to separate classes:
The following figures is an overview of training results.
- The surface is the raw output of the network.
- Red dots are points in training dataset belonging to class A.
- Blue dots are points in training dataset belonging to class B.
- Green circle are well classified points.
- Black cross are badly classified points.
Source code and download
